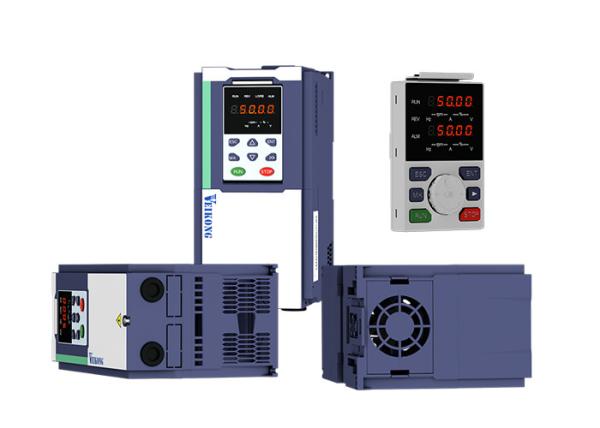

5500w 7500w 3 Phase Solar Pump Inverter For Swimming Pool Water Circulation System

Name: 5500w 7500w 3 Phase Solar Pump Inverter For Swimming Pool Water Circulation System
Brand: VEIKONG
Price: 1 USD

Wholesale 5500w 7500w 3 Phase Solar Pump Inverter For Swimming Pool Water Circulation System from china suppliers

Brand Name : VEIKONG

Model Number : VFD500-PV

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15000pcs per Month

Delivery Time : 3 days, depend on the order quantity

Packaging Details : Carton and Wooden Box

Product Name : 5.5kw 7.5kw Solar Pump Inverter

Current : 17A

Output frequency : 50/60HZ

Display : LED/LCD

Weight : 4kg

Output type : 3 Phase

Contact Now

3 Phase 5.5KW 7.5KW Solar Pump Inverter For Swimming Pool Water Circulation System

1, Our solar pump inverter Auto mppt tracking >99%, auto tracking better than fixed Mppt.

2, Support LCD and LED keypad control and monitor.

3, Get maximum pump output flow

4, Dry run protection and automatic running without any commissioning and setting parameters

5, Low voltage range for running

6, Support AC and DC input, also support GPRS function

7, Can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements), implementing 24 hour unattended work

Electrical Specifications and Power Degree

	220V	380V
Max input DC voltage	450V	810V
DC voltage range	150~450VDC	300~810VDC
Normal working DC voltage	260V-400V	400V-650V
Recommended input mppt voltage	330V	550V
MPPT efficiency	>99%
Rated output voltage	1/3-phase 220VAC	3-phase 380-480VAC
Output frequency range	50/60Hz
Max efficiency of the machine	99%
Ambient temperature range	-10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method	Air cooling
Protection degree	IP20/IP21
Altitude	Below 1000m; above 1% for every additional 100m.
Standard	CE/ROHS

Product Application

5500w 7500w 3 Phase Solar Pump Inverter For Swimming Pool Water Circulation System

FAQ

1. What is the MPPT efficiency value of your product?

Our solar pump inverter with Auto-Mppt more than 99% and user friendly no need set any parameters, just connect with solar panels and pumps, it running automatically.

2. Does your inverter support AC and DC input?

Yes, our solar pump inverter support AC and DC input, you also can use them at the same time.

3. Are all inverters original?

Of course, we only do original product, because we have a strong and professional technical team.
